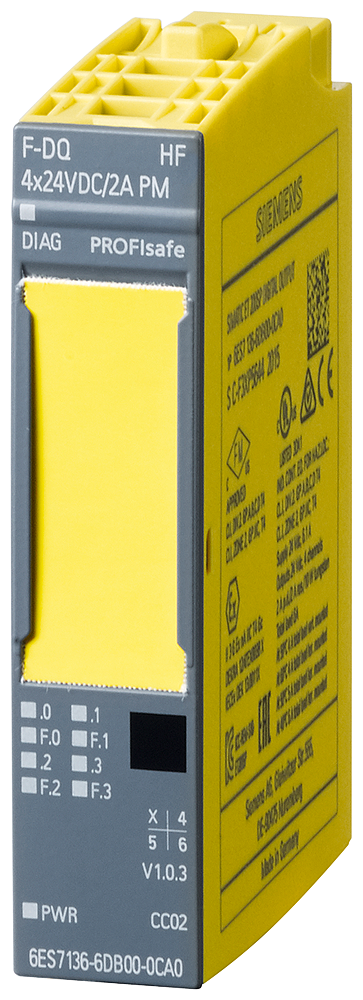

SIMATIC DP, electronic module for ET 200SP, F-DQ 4x24VDC/2A

SIMATIC DP, electronic module for ET 200SP, F-DQ 4x24VDC/2A

SKU: 6ES7136-6DB00-0CA0 Categories: , ,

$394.36 – $438.18

Get Best Price

F-DQ 4x24VDC/2A PM HF — fail-safe digital output module, 15mm width, up to PL e (ISO 13849) / SIL 3 (IEC 61508). [VERIFIED via Siemens official datasheet]

Technical Specifications

Module Type Fail-safe Digital Output
Channels 4
Current per Channel 2A
Module Width 15mm
Safety Rating Up to PL e (ISO 13849) / SIL 3 (IEC 61508)
Important Note A near-identical order number (6ES7136-6DB01-0CA0) exists with the same safety equipment manual reference — verify exact order number when sourcing replacement modules for an existing safety-rated installation

Typical Applications

Used in safety-related ET 200SP applications such as emergency stop circuits or safety interlocks requiring up to SIL3/PLe-rated digital output switching.
