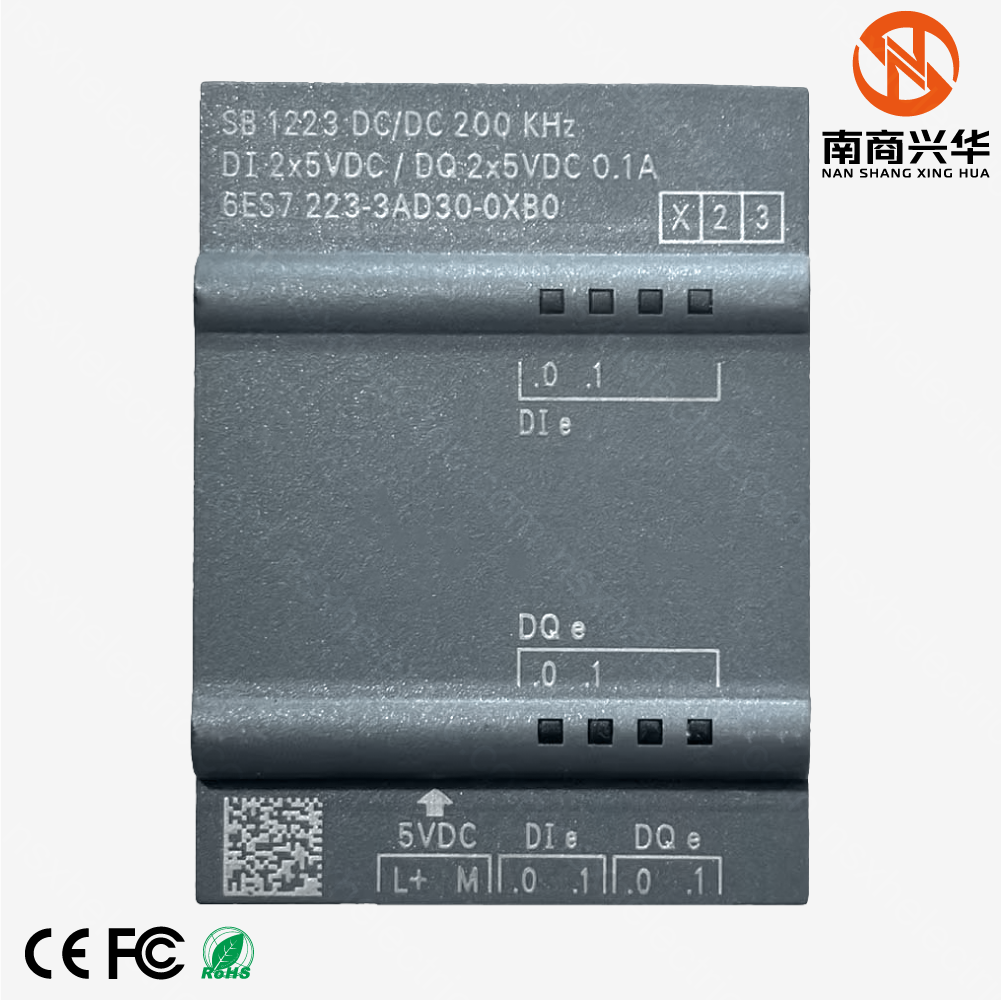

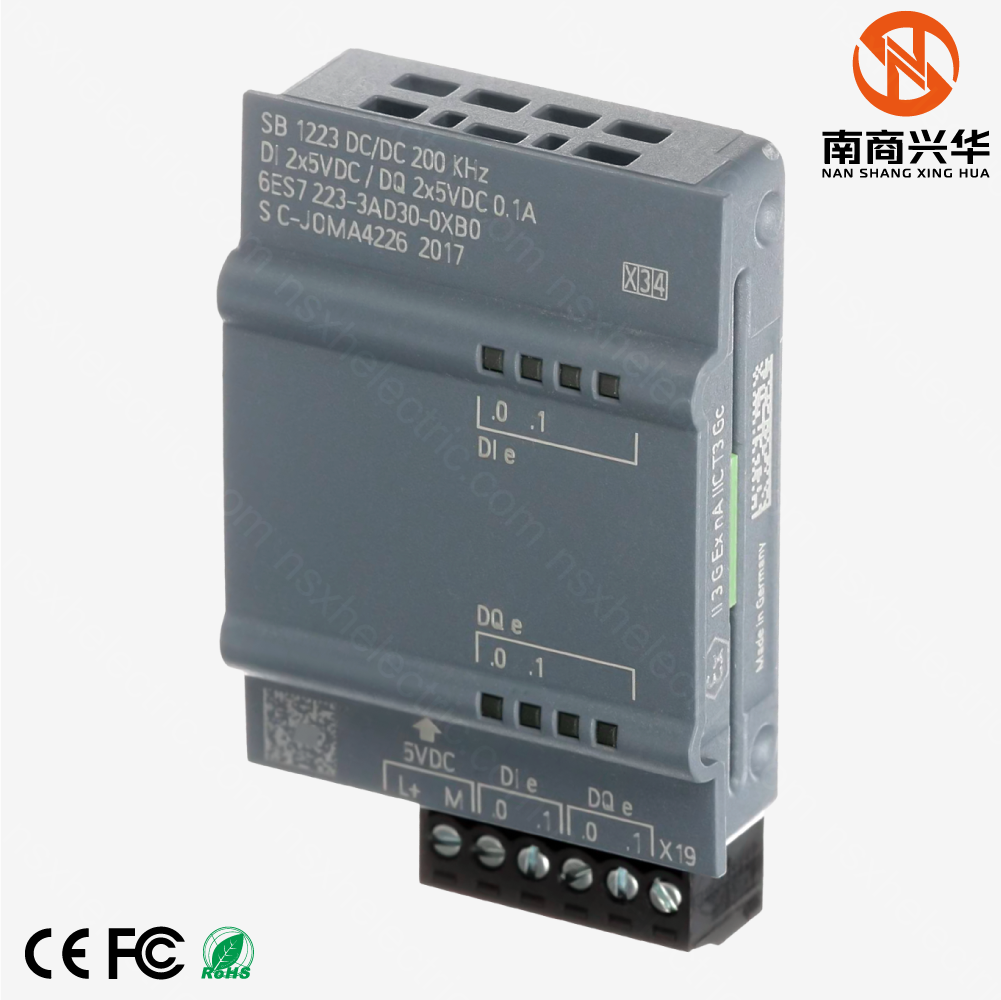

SIMATIC S7-1200 SB 1223, DI 2×5 VDC/DQ 2×5 VDC 200 kHz PLC Expansion Module

SKU: 6ES7223-3AD30-0XB0 Categories: ,

$87.25 – $96.95

Get Best Price

SB 1223 Signal Board — 2DI / 2DO, 5V DC, 200kHz high-speed.

Technical Specifications

Module Type Digital I/O (Signal Board)
Digital Inputs 2x 5V DC, 200 kHz
Digital Outputs 2x 5V DC, 200 kHz

Typical Applications

Used for high-speed encoder or pulse interfacing at 5V DC signal levels, common with differential encoder outputs.
