Showing 17–32 of 47 results
IM 155-5 PN ST — supports up to 12 I/O modules without additional power supply, up to 30 modules WITH additional PS (shared device). MRP supported, IRT ≥0.25ms, includes PROFIBUS connection plug (6ES7972-0BB70-0XA0). [VERIFIED via Siemens official datasheet — note: title’s ’12 modules’ is the no-additional-PS limit, not the absolute maximum]
DP/DP coupler — coupling module for connecting two PROFIBUS DP networks, with redundant current infeed. [VERIFIED via Siemens official datasheet]

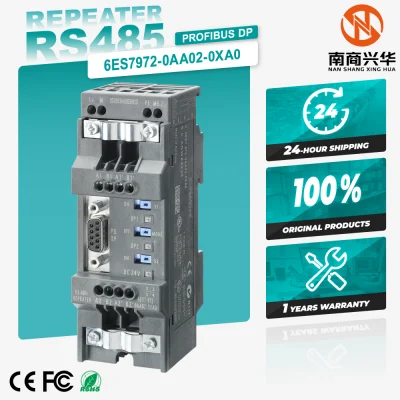

RS485 repeater for connecting PROFIBUS/MPI bus systems, max. 31 nodes per segment, max. 12 Mbit/s. [VERIFIED via Siemens official datasheet]
RS485 terminating resistor for PROFIBUS/MPI networks, 24V DC, 30mA, IP20. [VERIFIED via Siemens official datasheet]
PROFIBUS bus connector, RS485, angled cable outlet variant. [Based on consistent Siemens PROFIBUS connector numbering pattern within the 6ES7972-0Dxx series]
PROFIBUS bus connector, RS485, FastConnect (insulation-displacement, no wire stripping needed), 90° cable outlet, with PG socket. Dimensions 15.8x59x35.6mm, weight 10g. [VERIFIED via Siemens official datasheet]
PROFIBUS bus connector, RS485, screw-type terminals (NOT FastConnect — requires wire stripping), 90° cable outlet, with PG socket, terminating resistor with isolating function. [VERIFIED via Siemens official datasheet]
PROFIBUS bus connector, RS485, screw-type terminals, 35° angled cable outlet, with PG socket. [VERIFIED via Siemens official datasheet]
PROFIBUS bus connector, RS485, FastConnect technology, 35° cable outlet, with PG socket, weight approx. 34g. [VERIFIED via Siemens official datasheet]
PROFIBUS bus connector, RS485, screw-type terminals, 90° angled cable outlet, terminating resistor with isolating function, with PG socket. [VERIFIED via Siemens official datasheet]
PROFIBUS bus connector, RS485, FastConnect technology, 90° cable outlet, with PG socket, dimensions 15.8x72x36.4mm, weight approx. 45g, includes strain relief mechanism. [VERIFIED via Siemens official datasheet]
F-DQ 4x24VDC/2A PM HF — fail-safe digital output module, 15mm width, up to PL e (ISO 13849) / SIL 3 (IEC 61508). [VERIFIED via Siemens official datasheet]
Motor connector accessory for inverter/motor output feed connection on ET 200-based drive systems. [Based on consistent Siemens ET 200 motor-connection accessory naming]
Nameplate accessory for color-coded marking of ET 200 PRO connection module I/O. [VERIFIED via consistent Siemens accessory documentation for ET 200 PRO systems]
Connecting module for ET 200pro I/O, 16 x M12 — IMPORTANT: this is the field-wiring connection module/base, not the fail-safe electronic module itself; the F-DI module mounts onto this connection module. [VERIFIED via Siemens official datasheet]
IM154-8F PN/DP CPU — 512KB work memory, integrated PROFINET interface, integrated PROFIBUS DP master/slave interface, IP65/67. IMPORTANT: the ‘F’ designation means this CPU has integrated PROFIsafe fail-safe capability — not stated in many resale titles. Requires Micro Memory Card and connection module (sold separately). [VERIFIED via Siemens official datasheet]
