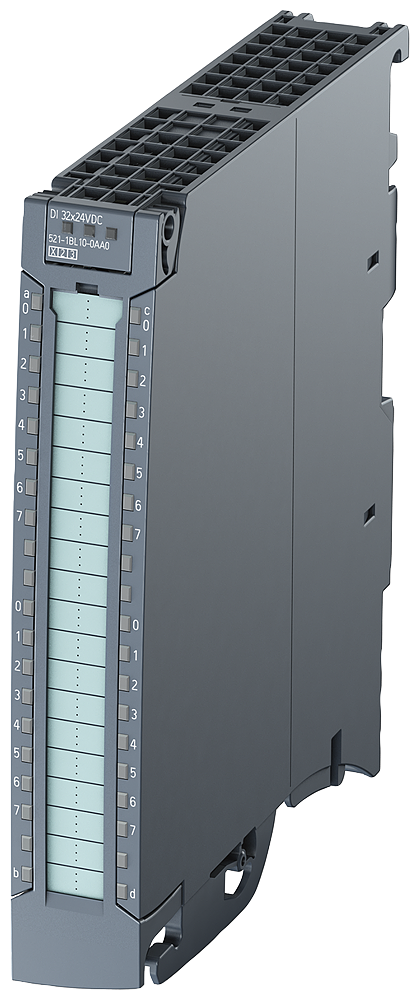

SIMATIC S7-1500 DI 32x24VDC BA 25 mm, includes push-in front plug
$602.77 – $669.74
DI 32x24VDC BA — 32-channel digital input module, Basic performance class, grouped in 16, typ. input delay 3.2ms, includes Push-In front connector. [VERIFIED via Siemens official datasheet]
Technical Specifications
| Module Type | Digital Input, Basic (BA) class |
| Channels | 32, in groups of 16 |
| Input Delay | Typ. 3.2 ms |
| Input Type | Type 3 (IEC 61131) |
| Front Connector | Included, Push-In type |
Typical Applications
Cost-effective high-density digital input module for standard sensing applications where the Basic performance class (fixed input delay, no per-channel diagnostics) is sufficient.
