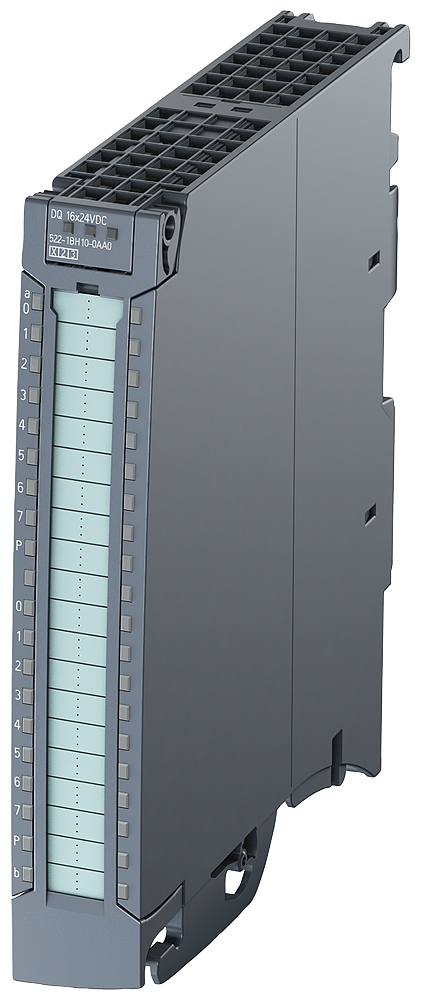

SIMATIC S7-1500 drives ClIQ 16x24VDC/0.5A high frequency 35mm.

SIMATIC S7-1500 drives ClIQ 16x24VDC/0.5A high frequency 35mm.

SKU: 6ES7522-1BH01-0AB0 Categories: ,

$396.28 – $440.32

Get Best Price

DQ 16x24VDC/0.5A HF — 16-channel digital output module, 0.5A per channel, 4A per group of 8, single-channel diagnostics, switching cycle counter, SIL2/PLd safety shutdown capability, firmware V1.1.0. [VERIFIED via Siemens official datasheet]

Technical Specifications

Module Type Digital Output, High Feature (HF) class
Channels 16, in groups of 8 (4A per group)
Rated Current per Channel 0.5 A
Firmware Version V1.1.0 (from FS02)
Diagnostics Single-channel diagnostics, substitute value, switching cycle counter
Safety Function Supports safety-related shutdown of load groups up to SIL2 (EN IEC 62061) / Category 3 / PL d (EN ISO 13849-1)

Typical Applications

Mid-density digital output module, smaller version of the 32-channel DQ 32x24VDC/0.5A HF, used where 16 channels with per-channel diagnostics and optional safety-related shutdown are sufficient for the application.
