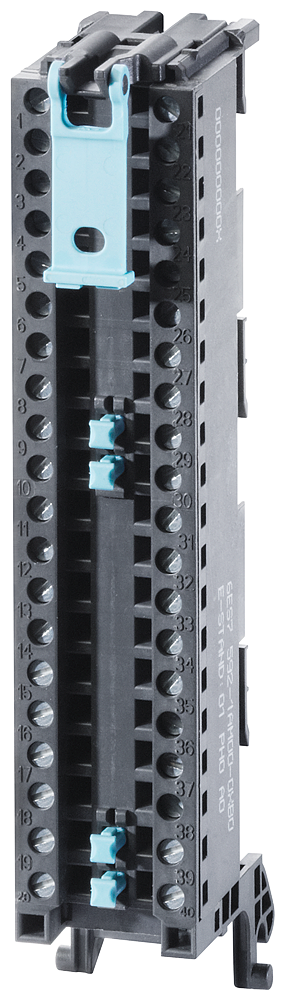

SIMATIC S7-1500, front connector, screw terminal technology, 40 pins for 35mm wide modules, includes 4 potential bridges and cable ties.

SIMATIC S7-1500, front connector, screw terminal technology, 40 pins for 35mm wide modules, includes 4 potential bridges and cable ties.

SKU: 6ES7592-1AM00-0XB0 Categories: ,

$68.83 – $76.48

Get Best Price

Front connector, screw-type connection, 40-pole for 35mm wide modules, includes 4 potential bridges and cable ties. Connectable conductor size AWG 24-16, tightening torque 0.4-0.7 N·m. [VERIFIED via Siemens official datasheet]

Technical Specifications

Product Type Front Connector (Screw Terminal)
Poles 40-pole
Compatible Module Width 35mm
Connectable Conductor Size AWG 24 to 16 (0.25–1.5 mm²)
Tightening Torque 0.4–0.7 N·m
Included 4 potential bridges, cable ties

Typical Applications

Standard screw-terminal front connector for wiring field cables to 35mm-wide S7-1500 signal modules, suited for installations where screw terminals (rather than Push-In) are the preferred wiring method.
